Xüsusiyyət
# | Element | Parametr | Diqqət | ||
1 | Nominal qabiliyyət | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2V | |||
3 | AC Impedance Resistance(1KHz) | ≤0.5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Doldurma temperaturu | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Boşaltma temperaturu | -20°C~55°C | |||
9 | Saxlama Temperaturu | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
Ölçü | Eni | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5 mm | |||
14 | High( Total) | 200.5 ± 0.5mm | |||
15 | High( Subject) | 195.5 ± 0.5mm | |||
16 | Tabs Distance | 67.0 ± 1.0mm | |||
17 | Batareya çəkisi | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
Tətbiq
Fabrikimiz

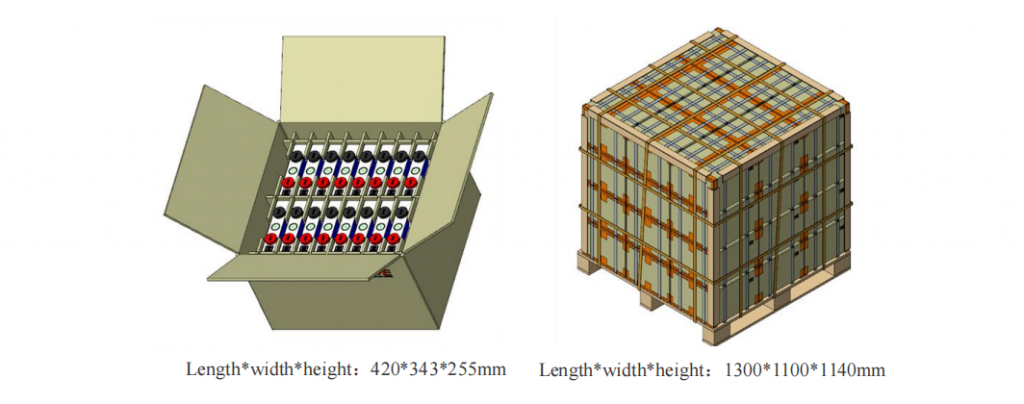

Qablaşdırma və Göndərmə
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
Saxlama
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
Suallar
Q1. Nümunə sifariş edə bilərəmmi?
A. Bəli, keyfiyyəti yoxlamaq və yoxlamaq üçün nümunə sifarişini alqışlayırıq.
Q2. Aparıcı vaxt haqqında nə demək olar?
A. Nümunənin 3 günə, kütləvi istehsal vaxtının 5-7 həftəyə ehtiyacı var, bu sifariş miqdarından asılıdır.
Q3. MOQ məhdudiyyətiniz varmı?
A. Bəli, kütləvi istehsal üçün MOQ var, fərqli hissələrin nömrələrindən asılıdır. 1 ~ 10azn nümunə sifariş mövcuddur. Aşağı MOQ, nümunə yoxlanılması üçün 1 ədəd mövcuddur.
Q4. Malları necə göndərirsiniz və gəlməsi nə qədər çəkir?
A. Gəlmək üçün ümumiyyətlə 5-7 gün çəkir. Aviaşirkət və dəniz nəqliyyatı da isteğe bağlıdır.
Q5. Sifarişlə necə davam etmək olar?
A. Əvvəlcə tələblərinizi və ya tətbiqlərinizi bizə bildirin. İkincisi, tələblərinizə və ya təkliflərimizə görə sitat gətiririk. Üçüncü müştəri nümunələri təsdiqləyir və rəsmi sifariş üçün əmanət qoyur. Dördüncüsü, istehsalı təşkil edirik.
Q6. Loqotipimi məhsula yazdırmaq yaxşıdırmı?
A. Bəli. Zəhmət olmasa istehsalımızdan əvvəl bizə rəsmi məlumat verin və əvvəlcə nümunəmizə əsaslanaraq dizaynı təsdiqləyin.
Q7.Hansı sertifikatlar var?
A: CE / FCC / ROHS / UN38.3 / MSDS ... və s.
Q8. Zəmanət necədir?
A: 3 il zəmanət
