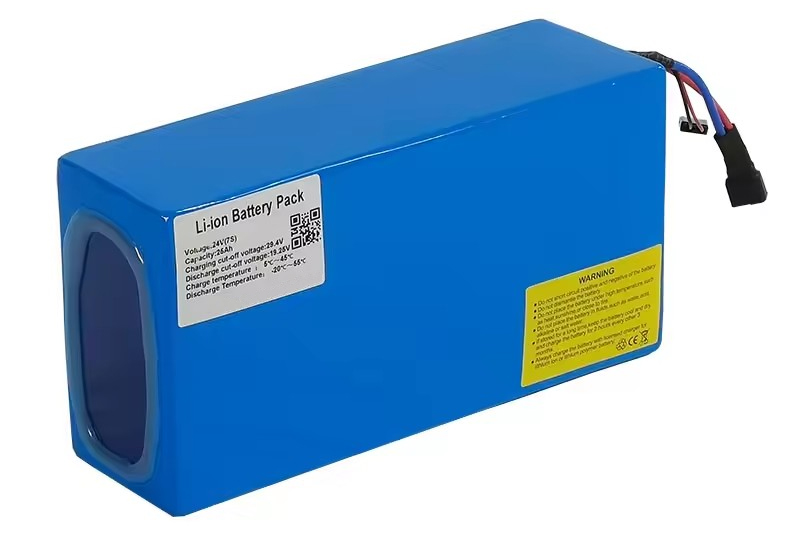

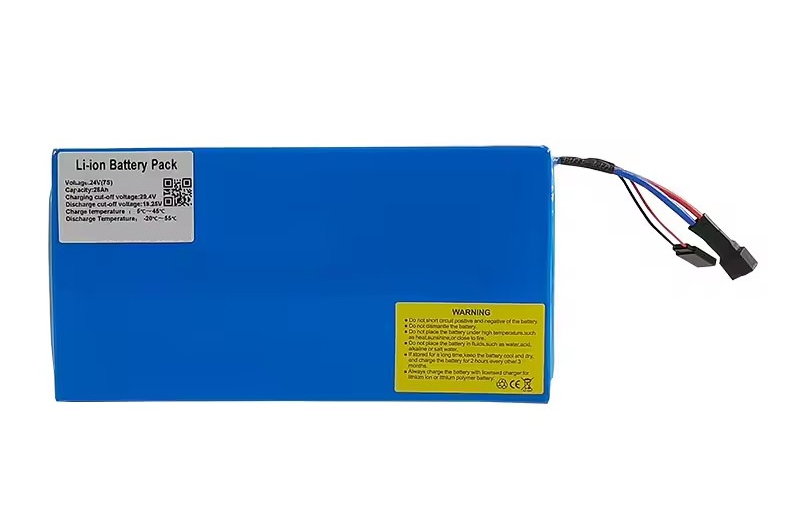

OEM ODM 18650 Battery Pack 24V 26Ah

2024-04-23 06:10

Xüsusiyyət

Yox.	Element	Ümumi parametr		Diqqət
1	Qiymətləndirmə qabiliyyəti	Tipik	26Ah	Standard discharge(0.2C5A)after standard charge
		Minimum	25.5Ah
2	Nominal gərginlik	24V		Orta əməliyyat gərginliyi
3	Boşaltma sonundakı gərginlik	19.25V		Boşaltma gərginliyi
4	Gərginliyin sonunda şarj	29.4V
5	Daxili impedans	28mΩ
6	Standart şarj	Constant Current 0.2C5A Constant Voltage 29.4V 0.02C5A cut-off
7	Standart boşalma	Constant Current 1C5A end Voltage 19.25V
8	Sürətli şarj	Constant Current0.5C5A Constant Voltage 29.4V 0.02C5A cut-off
9	Tez boşalma	Constant Current 3C5A end Voltage 19.25V
10	Maksimum davamlı yükləmə cərəyanı	0.5C5A
11	Maksimum davamlı axıdma cərəyanı	3C5A
12	Əməliyyat Temperaturu Aralığı	Charge:5~45℃		60+/-25%R.H. Bare Cell
		Boşaltma: -10 ~ 60 ℃
13	Saxlama Temperatur Aralığı	1 ildən az: -20 ~ 25 ℃		60+/-25%R.H. at the shipment state
		Less then 3 months:-20~40℃
14	Çəki	Approx 6kg

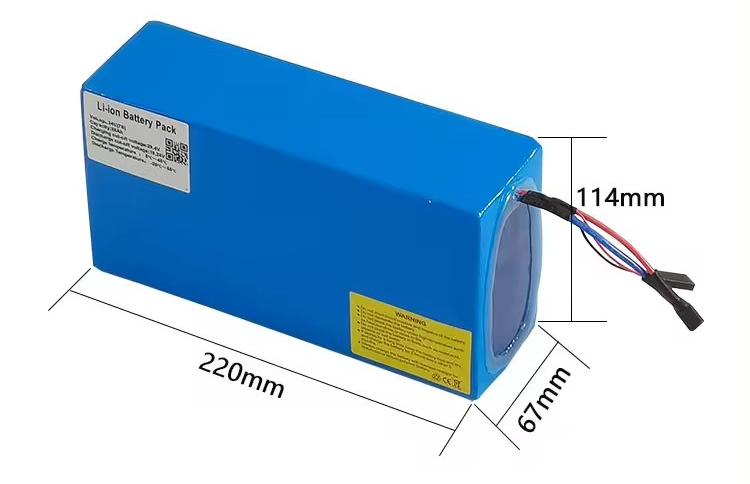

15	Ölçü	220*67*114mm



General Feature

Long cycle life more than 1000 times

Over-charge/over-discharge/over-current safety protection

Short circuit safety protection

High temperature safety protection

In-built safety protection BMS

All battery are complied with ISO/CE/UN/EC/EN62133/MSDS

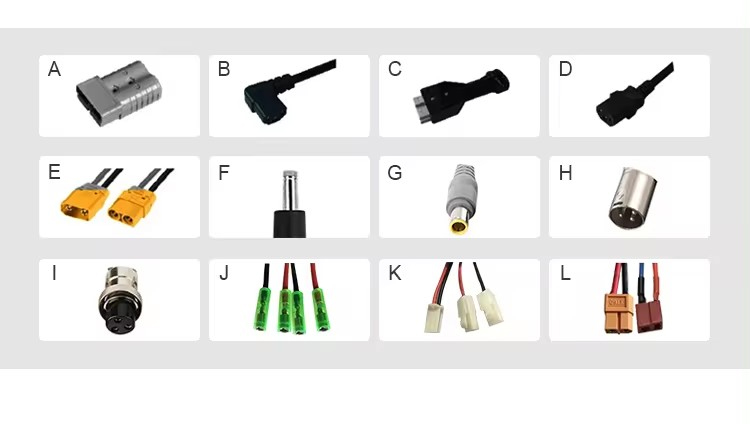

Discharge Connector

Tətbiq

The PVC lithium ion battery packs can be widely used in ebike,electric scooter,robot,medical device,electric motorcycle,electric wheelchair,energy storage etc.

Package/Shipping

1.Packing:All goods are 100% tested pass before dispatch and packed by customized spongs with high hardness/thick cartons

2.For Samples:can ship within 7-10days

Suallar

Q1:Are you factory?

A1:Yes,we are factory for more than 14 years battery experience with superior quality and best price.

Q2:Can I have a sample order?

A2:Yes,we accept sample order to test and check quality firstly.Batteries can be made as your request

Q3:Do you have MOQ?

A3:No MOQ,but the more you order,the better price you get.All products are always in stocks

Q4:What's your delivery date?

A4:Usually about 7-10 days for samples,15-20 days for mass orders after payment confirmed

Q5:What's your payment terms?

A5:T/T,Paypal,Western Union

Q6:Which shipping method you usually take?

A6:Generally,battery will be shipped via express,UPS,DHL and so on.We can also ship with your own shipping forwarder

Q7:What kind of package you provide for your products?

A7:We pack the batteries by PE bag/cartons/boxes.Also if you ship with your own agents,we can pack as your agents requested

Q8:Can you accept Trade Assurance Order or deposit for order?

A8:Yes,welcome to send us trade assurance order anytime.also we can accept 30% deposit just make sure full payment before dispatch

Q9:What about your after-sales service?

A9:We will offer you 1 year guarantee.If there are any problems,pls inform us,we'll give the most perfect solutions
