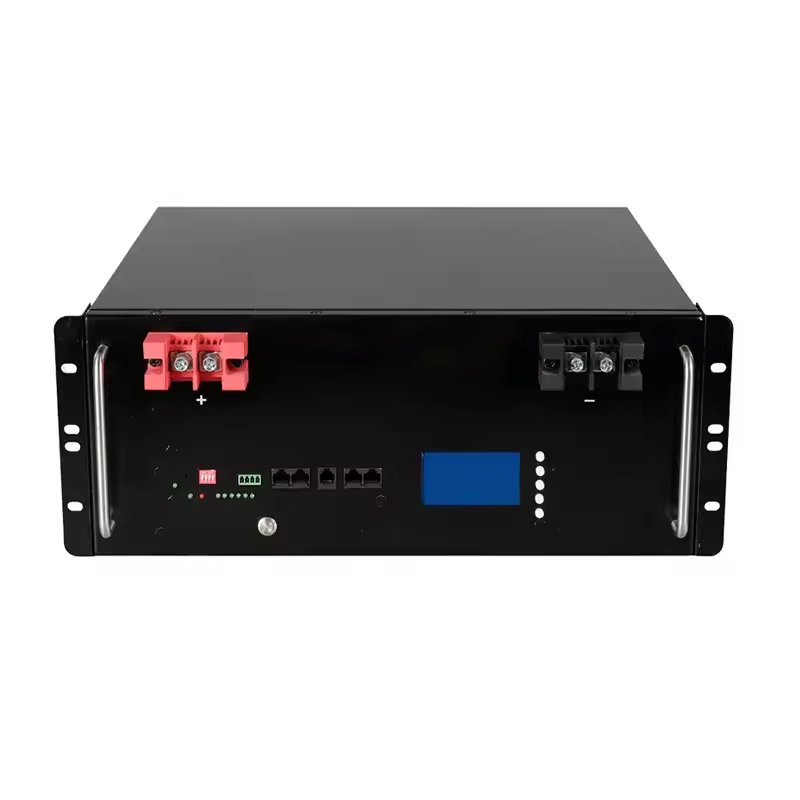

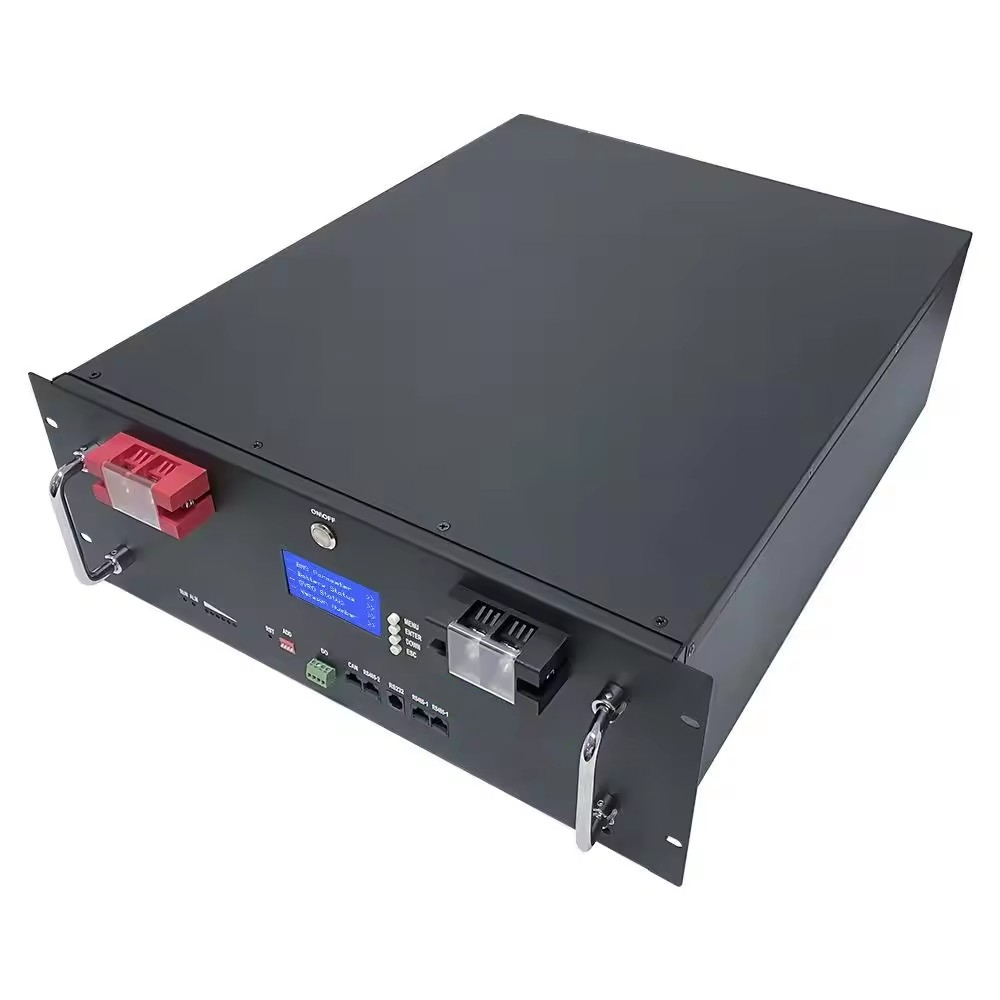

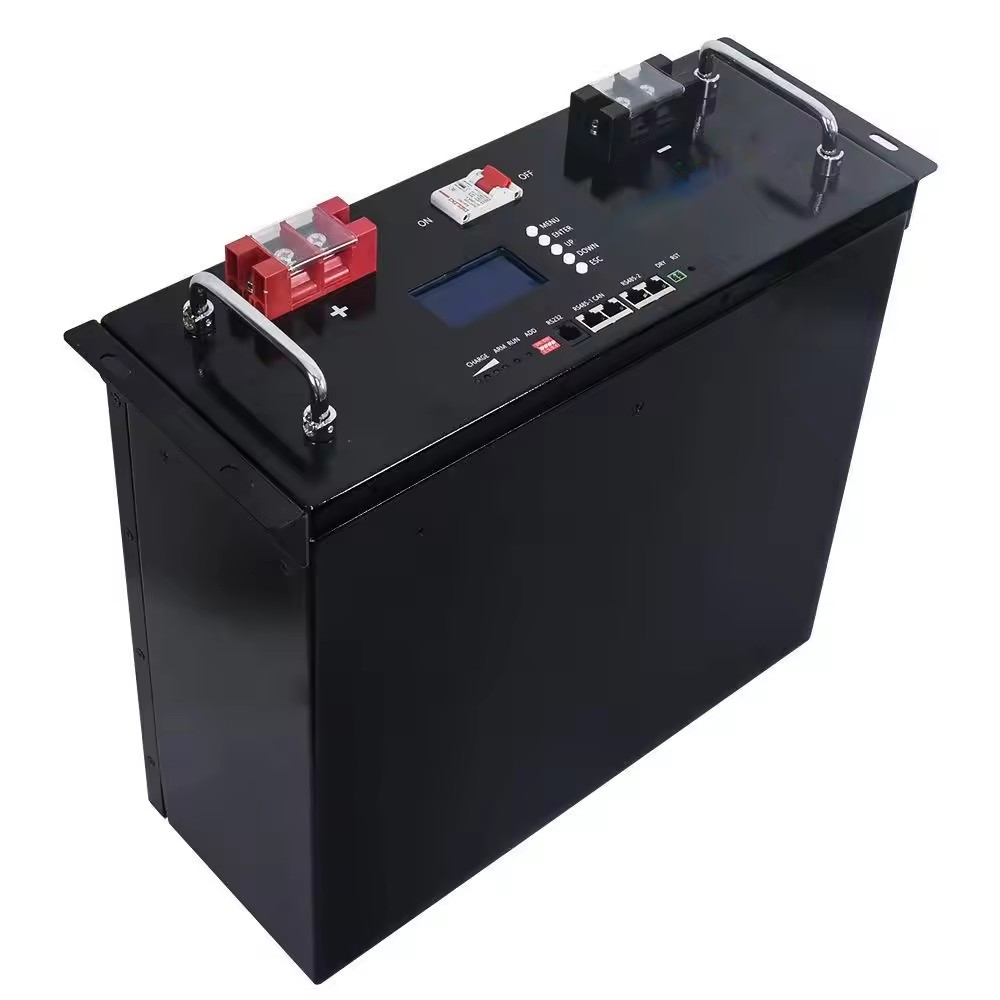

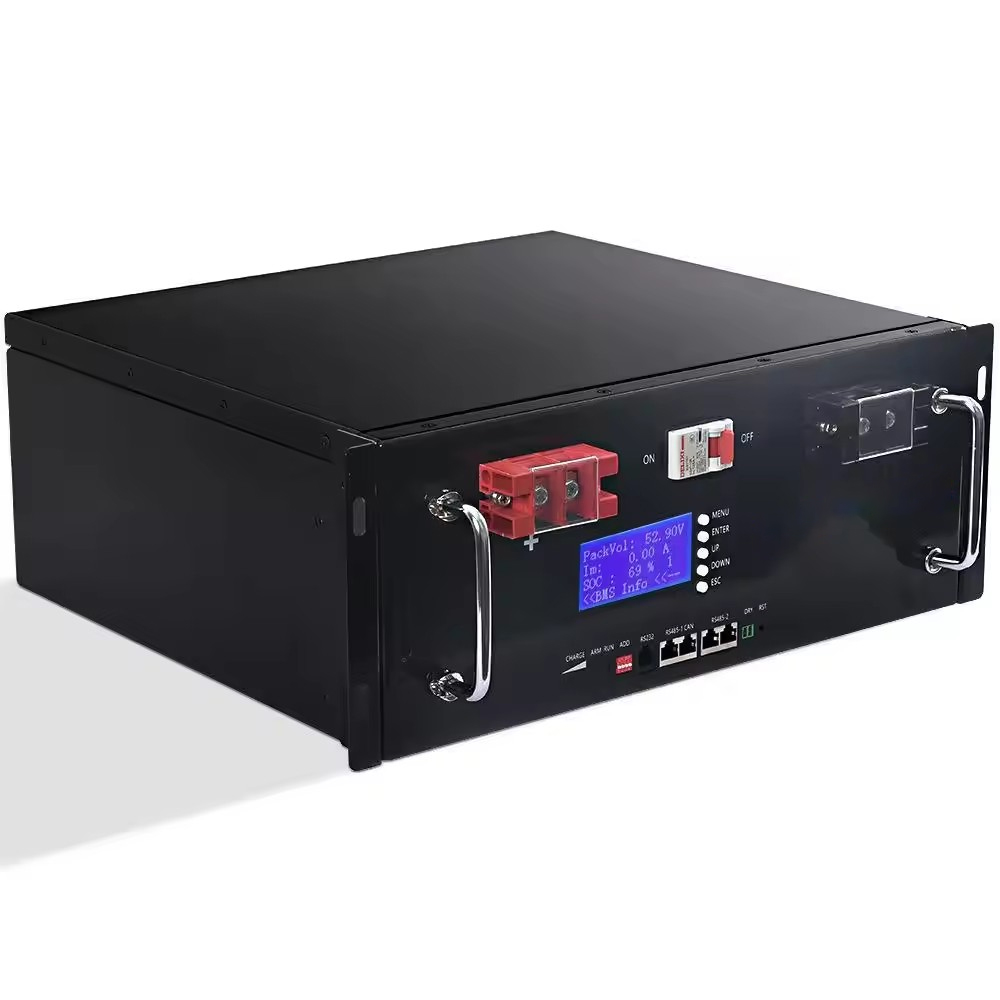

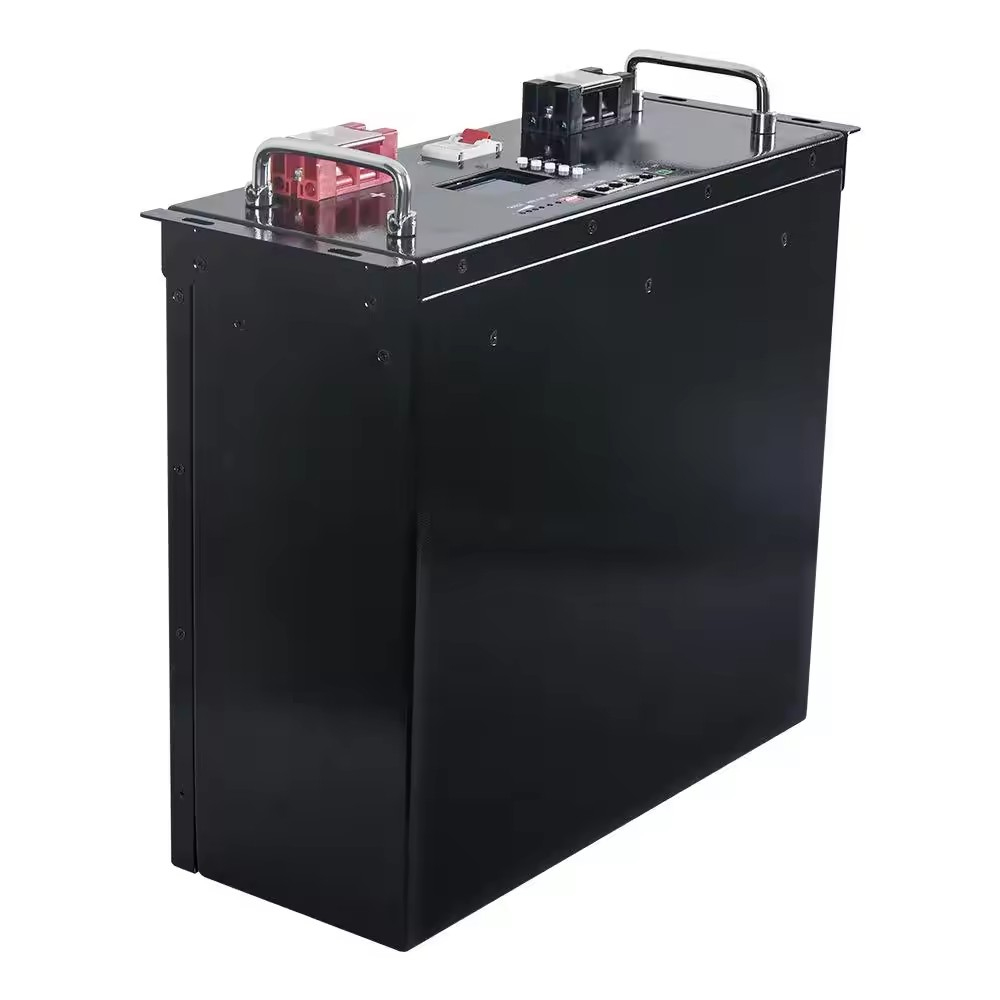

Litium-ion günəş batareyası 51.2v 100ah 200ah 300ah

2024-08-27 11:02

Məhsul təsviri

Nominal gərginlik	51.2V	51.2V	51.2V
Nominal qabiliyyət	100Ah	230Ah	304AH
Enerji	5120Wh	11776Wh	15360wh
Series or Parallel Connection	16S1P	16S1P	16S1P
Maksimum şarj cərəyanı	100A	200A	200A
Charge Current (-20 to - 10 ºC)	≤0.05C	≤0.05C	≤0.05C
Tövsiyə olunan şarj gərginliyi	56V-57.6V	56V-57.6V	56V-57.6V
BMS şarj voltajının kəsilməsi	57.6V (3.75±0.025vpc)	57.6V (3.75±0.025vpc)	57.6V (3.75±0.025vpc)
Gərginliyi yenidən bağlayın	54.6V (3.34 ±0.05vpc)	54.6V (3.34 ±0.05vpc)	54.6V (3.34 ±0.05vpC)
Dimensions (L x W x H)	440*435*222mm (17.3x17.1x8.74”)	480*248*618mm	475*255*770mm
Çəki	70KG with wooden packing	:116KG with wooden packing	138KG with wooden packing
Ünsiyyət İnterfeysi	RS485 (Optional)	RS485 (Optional)	RS485/CAN (Optional)
Kassa materialı	Metal	Metal	Metal
Enclosure Protection	IP54	IP54	IP54
Maksimum davamlı axıdma cərəyanı	100A	200A	200A
BMS axıdılması cari kəsmə	105A	230A	230A
Gərginliyi yenidən bağlayın	45V	45V	45V
Boşaltma istiliyi	-20 to 60ºC (-4 to 140 ºF)	-20 to 60ºC (-4 to 140 ºF)	-20 to 60ºC (-4 to 140 ºF)
Doldurma temperaturu	0 to 45ºC (32 to 113 ºF)	0 to 45ºC (32 to 113 ºF)	0 to 45ºC (32 to 113 ºF)

* Please Click Here:We Provide OEM /ODM Service !
* Quick Delivery From China.
Biz ən təhlükəsiz litium-dəmir fosfat batareyaları hazırlamağa qərarlıyıq.
Bütün batareyalarımız ciddi sınaqlardan keçmiş və dünya üzrə tətbiqlərdə istifadə üçün təhlükəsiz sertifikatlaşdırılmışdır.
Satışlarımızdakı bütün litium batareyalar CE, UN38.3, MSDS və digər nəqliyyat qaydalarına uyğundur, yerindən tez çatdırılır!
Əgər məhsulla bağlı sertifikata ehtiyacınız varsa, sizə göndərmək üçün bizimlə əlaqə saxlayın!
* For additional benefits For resellers

we provide super price for you and policy, We offer one-stop solar energy storage solutions,please contact us directly and we will tell you more. Most importantly, we can provide you with professional solutions tailored to your local market.



Products Feature

1.Excellent safety performance: Safest lithium iron phosphate battery, CE BIS, MSDS, UN38.3 approved, with built-in BMS.

2.Long cycle life and deep cycle: Performs more than 6000 cycles, 6-8 times longer than lead acid battery.

3.No memory effect, highly efficient and high energy density.

4.Compact size and light weight: 1/2 size & weight of lead acid battery

5.Excellent high temperature performance

6.Low self-discharge rate: < 3% per month

7.High IP standard: IP65 Waterproof.



Tətbiq

Fabrikimiz



Göndərmə və qablaşdırma

Suallar

Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, ALL IN ONE do not have MOQ limit, 1pc sample order or small quantity is available.

Q2. Aparıcı vaxt haqqında nə demək olar?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.

Q3. How do you ship the goods? How about the Shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.

Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.

Q5. Is it available to print my logo on the product?
A: Yes. For OEM Demand please send us your logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
