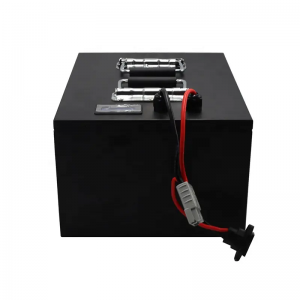

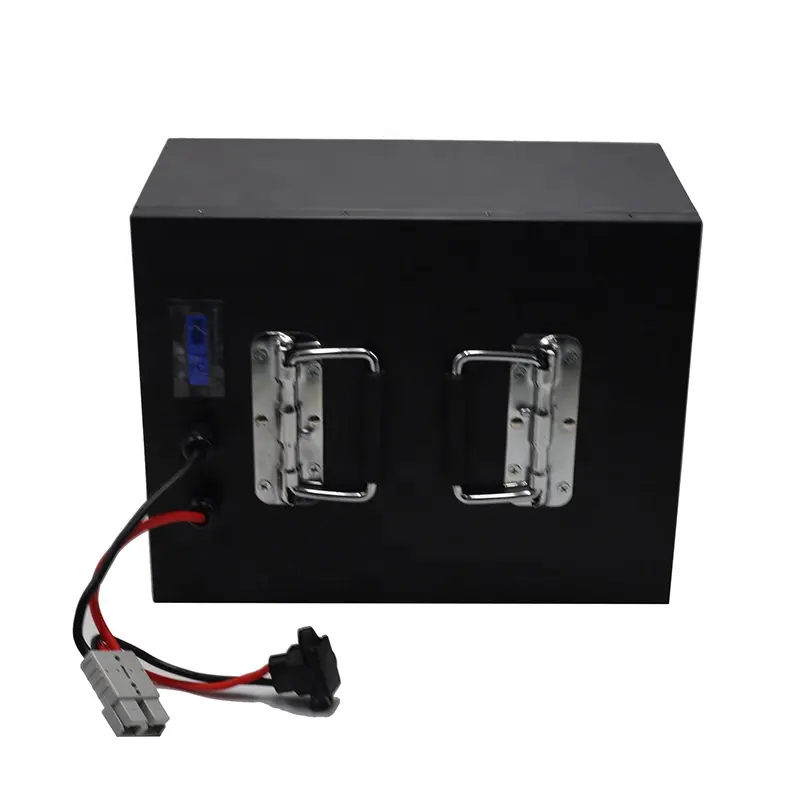

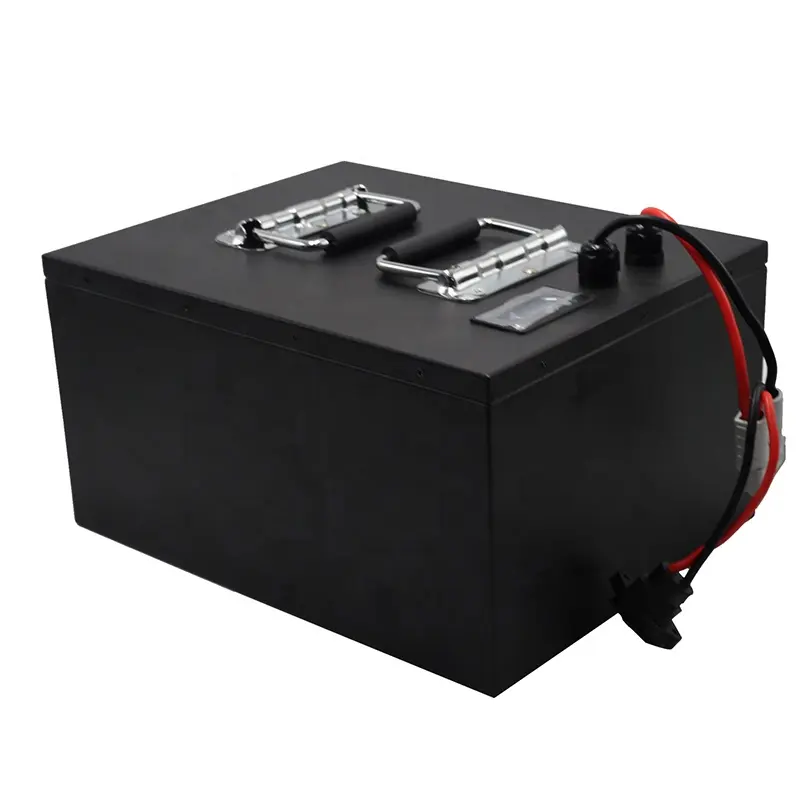

Elektrikli avtomobillər üçün xüsusi LiFePO4 Batareya Paketi 72v 60ah Elektrikli Avtomobil Akkumulyatoru Litium İon Paketi

2023-06-06 02:13

Xüsusiyyət

Brend adı	HAMISI BİRİNDƏ
Model	AIN7260
Zəmanət	5 il
Nominal gərginlik	76.8V
Nominal qabiliyyət	[email protected]/customize
Enerji	4416Wh
Daxili müqavimət	≤50mΩ
Həyat dövrü	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Özü axıdılması	25 25 at ayda% 3,5
Maksimum Şarj Gərginliyi	87.6 V
Şarj rejimi	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Cari doldurma	30A
Maksimum şarj cərəyanı	60A
Cari boşalma	30A
Max. discharge Continuous Current	60A
Maksimum impuls cərəyanı	120A(<3S）
Boşaltma Gərginliyi	60V
Doldurma temperaturu	0 ℃ - 45 ℃ (32 ℉ - 113 ℉) @ 60 ± 25% nisbi rütubət
Boşaltma istiliyi	-20 ℃ - 60 ℃ (-4 140 - 140 ℉) @ 60 ± 25% nisbi rütubət
Saxlama Temperaturu	0 ℃ - 45 ℃ (32 ℉ - 113 ℉) @ 60 ± 25% nisbi rütubət
Su tozuna davamlılıq	IP55
Hüceyrə və Format	LFP  60AH 24S1P/customize
Korpus	Metal Case
Ölçü (L * W * H * TH)	özəlləşdirmək
Çəki	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Doldurma metodu	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Sertifikat	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Xatırlatma

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Tətbiq

Fabrikimiz

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Qablaşdırma və Göndərmə

Qablaşdırma

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Göndərmə

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Suallar

S: Mən necə ödəməliyəm? Hansı ödəniş rejimlərini qəbul edirsiniz?
A: T/T, PayPal, Western Union.

S: Nümunə sifarişi qəbul edilə bilərmi?
A: Bəli, batareyaların çoxu üçün test keyfiyyəti üçün nümunə sifarişləri məqbul və məqbuldur.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Batareya qabarıqlığı/qaynaqlanması kimi səbəb olduğu zərərlər üçün, şarjdan qaynaqlanan BMS qorunması olmayan batareya paketi.
