Xüsusiyyət
Supplier | ALL IN ONE Batareya Texnologiyaları Ltd |

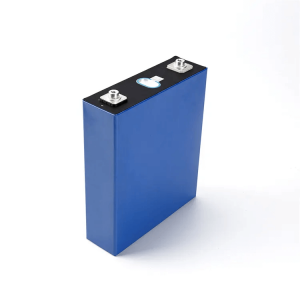

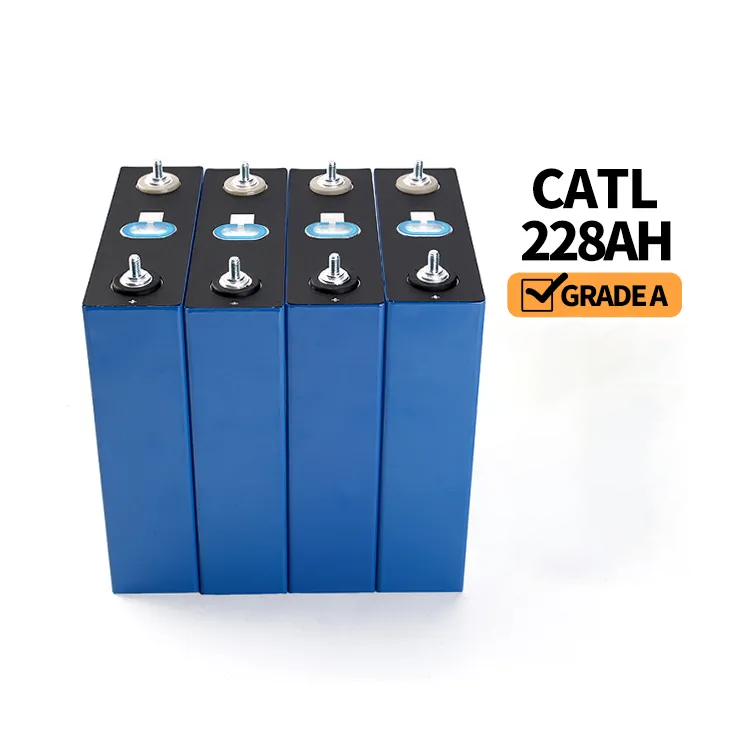

Model | CATL LF228 230Ah LiFePO4 3.2V Battery cell |
Real Tutum | Tested over 230Ah |
Nominal gərginlik | 3.2v |
Maksimum axıdılması cərəyanı | 1C/ 230A |
Max Charge Voltage | 3.65V |
AC impedans müqaviməti | ≤0.5mΩ |
Doldurma temperaturu | 0-60℃ |
Boşaltma temperaturu | -30-60 dərəcə |
Həyat dövrü | 6000 times SOC 80% |
Çəki | 4,2 kq |

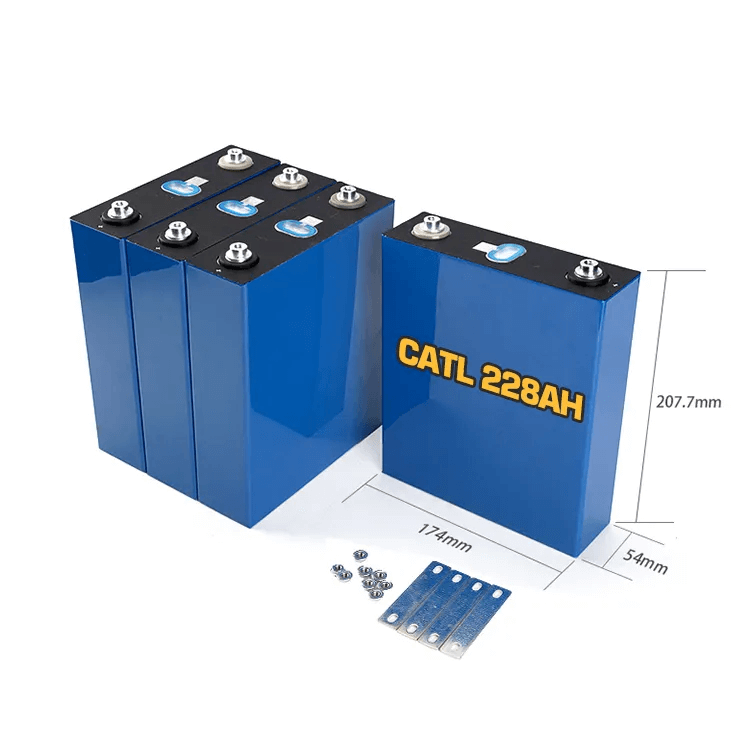

Ölçülər (L * W * H) | 174*54*208mm |
Proqramlar | Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power |
1. Yüksək gücü və sabit axıdılması gərginliyi
2. Yüksək performansla daha uzun iş vaxtı
3. Kiçik ölçülü yüngül çəki
4. Görkəmli axıdılması xüsusiyyətləri və kiçik daxili müqavimət
5. Yaddaş effekti, yaxşı axıdma qabiliyyəti və yüksək yük yoxdur və yüksək temperatura müqavimət göstərir
6. Ətraf mühitin qorunması üçün çirklənmə
7. 100% Orijinal orijinal li-ion doldurulan batareya
8. Partlayışdan qorunma və dövrə qorumasında bulid
Qeyd
1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

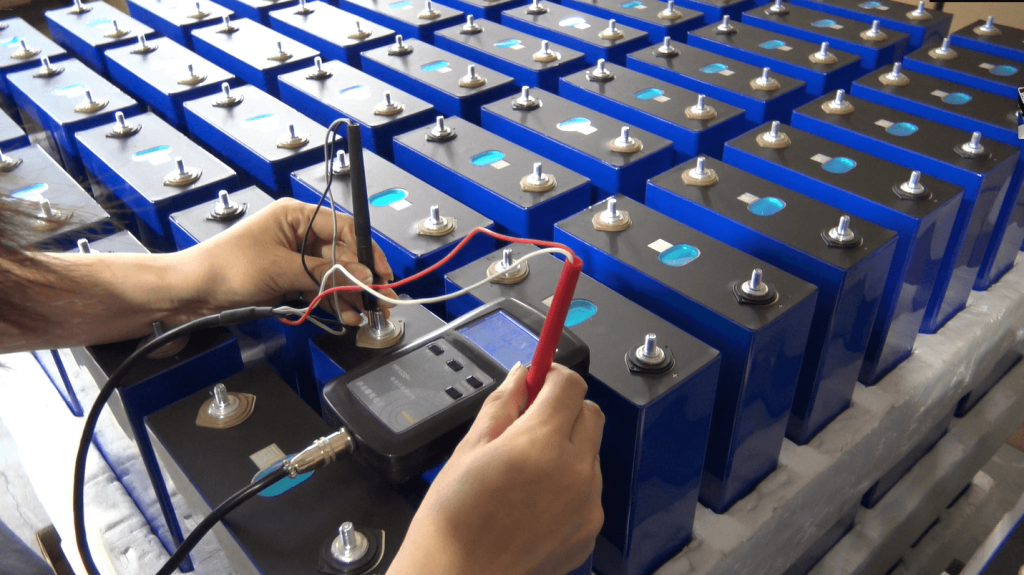

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.
Important & Warmly Reminder
Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.
Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time,otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.
Bu hallar nə geri, nə də geri qaytarmağı təmin etmir
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.
Kuryer və logistika
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.
Tətbiq

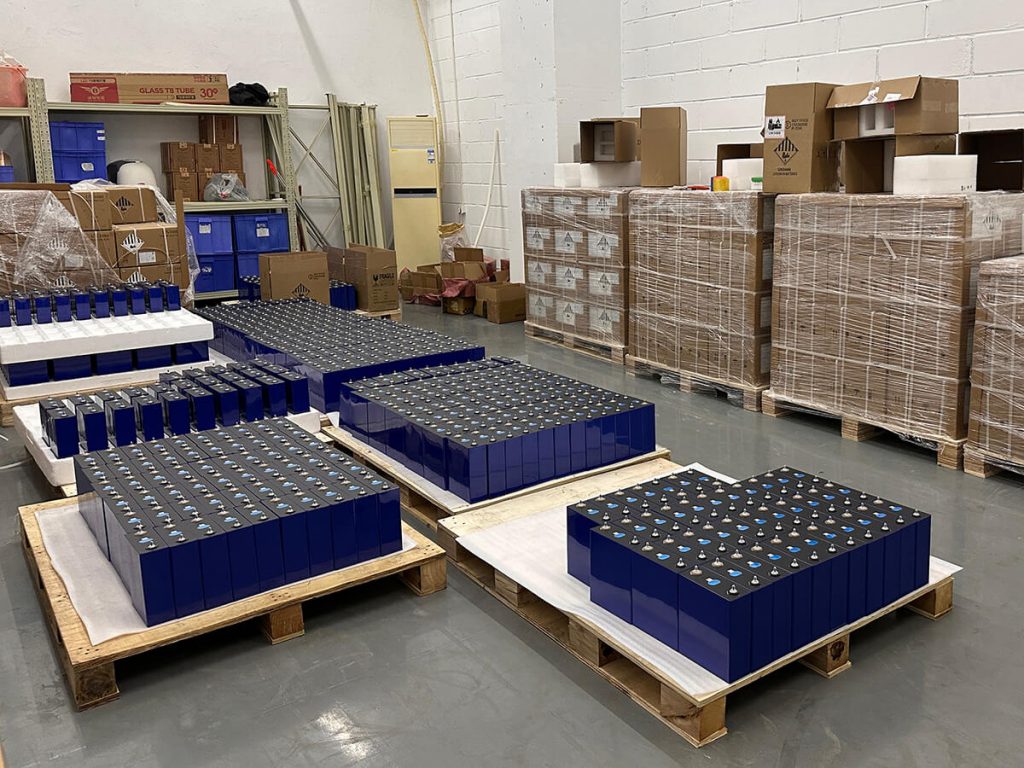

Fabrikimiz
1. Biz 10 illik təcrübəyə malik təchizatçıyıq. Bütün əşyalarımız yüksək keyfiyyət və yaxşı satış sonrası xidmətlə təmin olunur.
3. Sabit keyfiyyət - üstün material təchizatçısından və mükəmməl keyfiyyətə nəzarət sistemindən gəlin.
4. Hər hansı digər təchizatçılara nisbətən rəqabətli qiymət.
5. Sizin üçün 7/24 xidməti, bütün suallar 24 saat ərzində həll ediləcəkdir.
Qablaşdırma və Göndərmə
A: Bəli, keyfiyyəti yoxlamaq və yoxlamaq üçün nümunə sifarişini alqışlayırıq. Qarışıq nümunələr məqbuldur.Q2. Aparıcı vaxt haqqında nə demək olar?
A: Nümunə 3-5 günə, kütləvi istehsal müddətinə sifariş miqdarı üçün daha çox 1-2 həftə lazımdır
Q3. Litium batareyası üçün MOQ məhdudiyyəti varmı?
A: Aşağı MOQ, nümunə yoxlanılması üçün 1 ədəd mövcuddur
Q4. Malları necə göndərirsiniz və gəlməsi nə qədər çəkir?
A: Biz ümumiyyətlə DHL, UPS, FedEx və ya TNT ilə göndəririk. Gəlmək üçün ümumiyyətlə 3-5 gün çəkir. Aviaşirkət və dəniz nəqliyyatı da isteğe bağlıdır.
Q5. Lityum ion batareyası üçün sifarişə necə davam etmək olar?
A: Əvvəlcə tələblərinizi və ya tətbiqlərinizi bizə bildirin.
İkincisi, tələblərinizə və ya təkliflərimizə görə sitat veririk.
Üçüncüsü, müştəri nümunələri təsdiqləyir və rəsmi sifariş üçün depozit qoyur.
Dördüncüsü, istehsalı təşkil edirik.
Q6. Uzunmüddətli işgüzar münasibətlər qurmaq istəyiriksə gizlilik sazişi imzalaya bilərikmi?
Cavab: Əlbətdə, müştərilərin tələblərinə hörmət edirik, sizə daha çox fayda gətirəcəkdir.
S7: Məhsullar üçün zəmanət təklif edirsiniz?
A: Bəli, məhsullarımıza 12 aylıq zəmanət təklif edirik.
S8: OEM / ODM qəbul edirsiniz?
Cavab: Əlbətdə, xüsusi məmnuniyyətlə sizə xidmət etməkdən məmnunuq.
A: usually it takes 5 hours with 20A standard charger.
