Xüsusiyyət
Model nömrəsi | AIN HP5.1L-A1 | AIN HP7.6L-A1 | AIN HP10.2L-A1 |
Nominal Parameters | |||
Gərginlik | 48/51.2V | 48/51.2V | 48/51.2V |
Tutum | 100Ah | 150Ah | 200Ah |
Enerji | 5.12kwh | 7.68kwh | 10.24kwh |

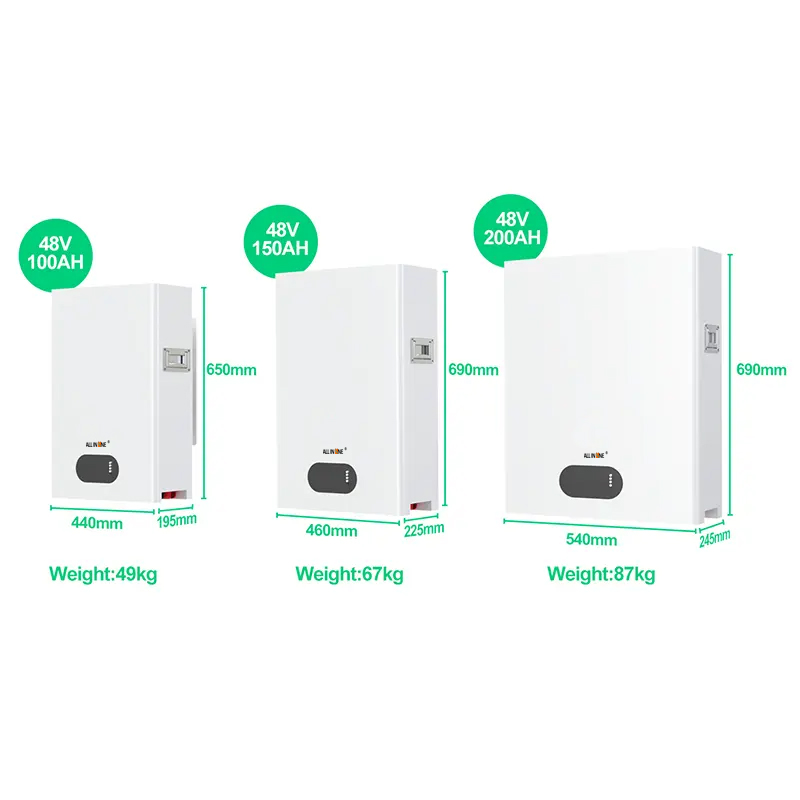

Dimensions (L xWxH) | 440x695x195mm | 460x690x225mm | 540x690x245mm |
Çəki | 49kg | 67kg | 87kg |
Əsas parametrlər | |||
Life Times (25C) | 20 Years | 20 Years | 20 Years |
Life Cycles (80% DOD, 25°C) | 5000 Cycles | 5000 Cycles | 5000 Cycles |
Storage Time /Temperature | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C |
Əməliyyat temperaturu | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity |
Saxlama Temperaturu | 0°C - 45°C @60+/-25% Nisbi Rütubət | 0°C - 45°C @60+/-25% Nisbi Rütubət | 0°C - 45°C @60+/-25% Nisbi Rütubət |
Litium Batareya Standartı | 1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||
Enclosure Protection Rating | IP31Rating | ||
Electrical Parameter | |||
Operation Voltage | 40-57.6Vdc | 40-57.6Vdc | 40-57.6Vdc |
Max charging Voltage | 58Vdc | 58Vdc | 58Vdc |
Max charging and Dis charging Current | 100A | 150A | 200A |
Maksimum güc | 5120 Vt | 7680 Vt | 10240 Vt |
Fabrikimiz
ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.
Suallar
S: Ticarət şirkəti və ya istehsalçısısınız?
A: We are ALL IN ONE original factory.
S: Test etmək üçün nümunələrim ola bilərmi? Nümunə sifariş üçün qurğuşun vaxtı nədir?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
S: Satış sonrası xidmət təqdim edirsiniz?
Cavab: Bəli, zəmanət 12 aydır, bu dövrdə hər hansı bir keyfiyyət problemi varsa, əvəzini dəyişdirərək yenisini göndərə bilərik.
S: OEM / ODM qəbul edirsiniz?
A: Bəli, mövcuddur.
S: Batareyanın həqiqi gücü var?
A: Az A, 100% yeni və həqiqi tutumlu bütün batareyalarımız.
S: Hansı sertifikatlar var?
A: Sifarişiniz böyükdürsə, CE, ROHS, FCC, IEC62133, MSDS, UN38.3 təmin edə bilərik.
S: MOQ varmı?
A: məhdud deyil. Kiçik sifariş də xoş gəlmisiniz. Daha çox miqdarda daha yaxşı qiymət var, sizin üçün ən yaxşı qiymətləri yoxlayacağıq.
S: Ödəniş müddətiniz nədir?
A: T / T, Paypal, Alibaba ödəniş yolu və s.
Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
